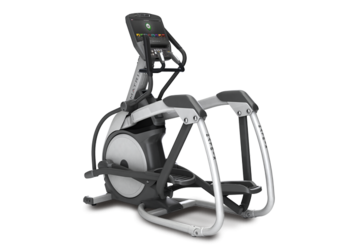

Matrix Matrix E7xi Suspension Elliptical

Matrix Matrix E7xi Suspension Elliptical



There are far too many cardio machines out there demanding that users adapt to their specific movements. Matrix equipment is different. And better. There is no wrong way to use it. Our machines provide a comfortable and effective workout no matter what position you’re in. But don’t let its simplicity fool you. These machines are not an easy way out.

Contralateral action with tapered, dual-action handlebars mimics the body's true movement for proper fit.

Pedals are positioned lower to the ground (24 cm / 9.5"), allowing users to easily step on and off the product.

Constant Rate of Acceleration and our patented suspension design deliver a perpetually smooth motion, free of wheels and tracks.

Ergo Form grips with integrated controls enhance comfort and accessibility to key functions. (A7xi shown)

The Matrix Suspension Elliptical® trainers feature a removable disk for quick access and easy serviceability.


Stride (inches) 53.3 cm / 21"
Pedal Spacing (inches) 6.4 cm / 2.5"
Upper Body Bars Multi-position dual action / custom ergo-bend stationary
Console/Controls 1 cm / 16" class projective capacitive touchscreen LCD
Data/Metrics Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, RPM, Heart Rate, METs, Watts, HD Dynamic Profile Display
Heart-Rate Monitoring Contact & Telemetric
Workload Range 1-25, Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn, Fitness Test, Random, Calorie Goal, Distance Goal, Time Goal`
Machine Dimensions (inches) 178 x 74 x 174 cm / 70" x 29.2" x 68.5"
Weight (pounds) 182.7 kg / 402 lbs.
Max User Weight (pounds) 182 kg / 400 lbs.
Power Source 100v-240v - 50/60Hz AC

* Subject to change without notice.
